MH1000/U/PS Print this pagePrint this page
MH1000/U/PS
Price: $30.00

Highlights:

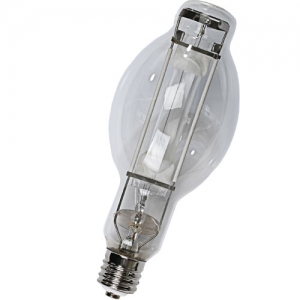

1000 Watt, BT37, Mogul base, metal halide, pulse start, high intensity discharge clear bulb (ANSI Code: M141/E)

Note: Lamps classified as E-type are used ONLY in suitably enclosed luminaries. See lamp warning. Color characteristics may vary somewhat from one lamp to another. Time should be allowed for lamp to stabilize in color when it is turned on for the first time or if for any reason its operating position is changed. This may require several hours of operation, with more than one start. Lamp color and output may change temporarily if the lamp is subjected to excess vibration or shock. Lamp color characteristics may change after long accumulated operating time. Use with 4000 Volt pulse-rated sockets only. This product contains less than 120 nCi of Kr-85. Turn power off before inspection, installation, or removal. Do not use where directly exposed to water or outdoors without an enclosed fixture. Keep combustible materials away from lamp. Do not exceed rated voltage. Use in fixture rated for this product. Do not use lamp if outer glass is scratched or broken. Use only properly rated ballast.
Shipping: Can ship anywhere
Description
1000 Watt, BT37, Mogul base, metal halide, pulse start, high intensity discharge clear bulb (ANSI Code: M141/E)

Specification
Specification
Product Type HID
Bulb BT37
Base Mogul
Watts 1000 W
Start Type Pulse Start
ANSI M141/E
Color Temperature 4000
Initial Lumens 110000
Average Life 15000
Operating Position Universal
Case Quantity 6
Brand ProLume
Color Rendering Index (CRI) 65
Design Lumens 96000
MOD 4.62
MOL 11.5
Nominal Length 11.5
Lens Clear
KR85 Content <120
Mercury Yes
Mercury Content (mg) 143
Open/Enclosed rated Enclosed
UN2911 Yes
UV/IR Emissions Yes
UNSPSC 39101614
Country of Origin China
HTS Code 8539320040
Lumen Range 100001 - 200000
Efficacy (lm/W) 110
Weight 0.993
Cross Reference
Replaces GE Part # MVR1000/U/BT37/PA
Replaces Osram/Sylvania Part # MS1000/BU/BT37/PS
Replaces Philips Part # M1000/PS/U/BT37

Images

Dimensional Drawing
Dimensional Drawing
