LED Panel Fixtures



Click to enlarge	UPC Code	Name	Halco #	Price	Description	Amps	CRI	Color temp	Dim?	IP	Lens	Volt	Watt Equiv	Watts	Lbs

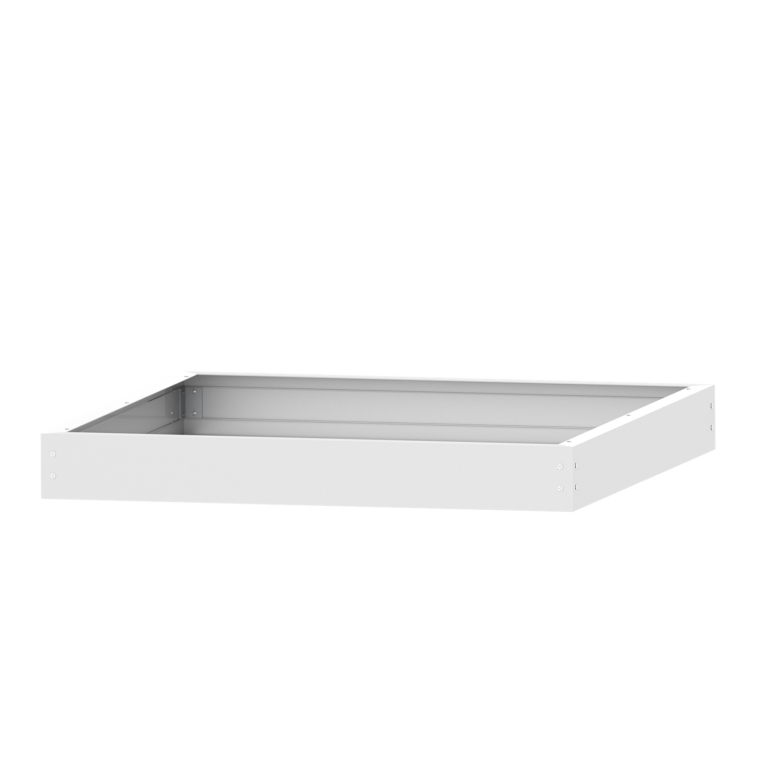

	807154819850	14EPL/SMK	81985	$29.00	1X4 Surface Mount Kit For Edge Lit Panels					20					2.26	Buy here
	807154819881	14EPL40/835/EM/LED	81988	$205.10	Edge-Lit Flat Panel 1X4 40W 3500K 0-10V Dimmable W/Battery Backup	0.32	82	3500	0-10V	20	Frosted	120-277		40	11.9	Buy here

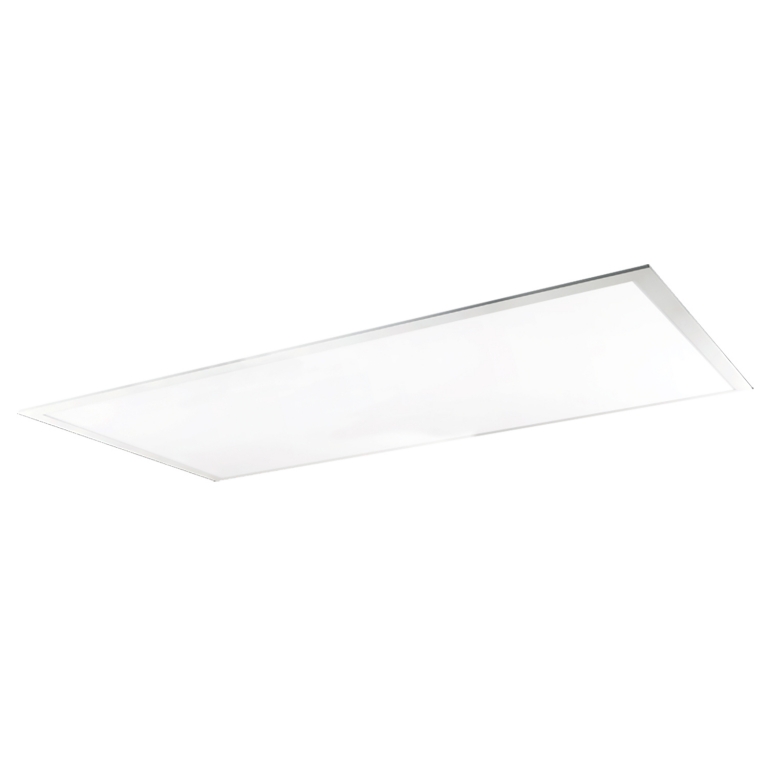

	807154819829	14EPL40/835/LED	81982	$65.00	Edge-Lit Flat Panel 1X4 40W 3500K 0-10V Dimmable	0.32	82	3500	0-10V	20	White	120-277		40	9.8	Buy here
	807154819898	14EPL40/840/EM/LED	81989	$205.10	Edge-Lit Flat Panel 1X4 40W 4000K 0-10V Dimmable W/Battery Backup	0.32	82	4000	0-10V	20	Frosted	120-277		40	11.9	Buy here
	807154819836	14EPL40/840/LED	81983	$65.00	Edge-Lit Flat Panel 1X4 40W 4000K 0-10V Dimmable	0.32	82	4000	0-10V	20	Frosted	120-277		40	9.8	Buy here
	807154819904	14EPL40/850/EM/LED	81990	$205.10	Edge-Lit Flat Panel 1X4 40W 5000K 0-10V Dimmable W/Battery Backup	0.32	82	5000	0-10V	20	Frosted	120-277		40	11.9	Buy here
	807154819843	14EPL40/850/LED	81984	$65.00	Edge-Lit Flat Panel 1X4 40W 5000K 0-10V Dimmable	0.32	82	5000	0-10V	20	Frosted	120-277		40	9.8	Buy here
	807154819867	22EPL/SMK	81986	$24.80	2X4 Surface Mount Kit For Edge Lit Panels					20					1.81	Buy here
	807154819690	22EPL30/835/EM/LED	81969	$198.30	Edge-Lit Flat Panel 2X2 30W 3500K 0-10V Dimmable W/Battery Backup	0.41	82	3500	0-10V	20	Frosted	120-277		30	11.99	Buy here

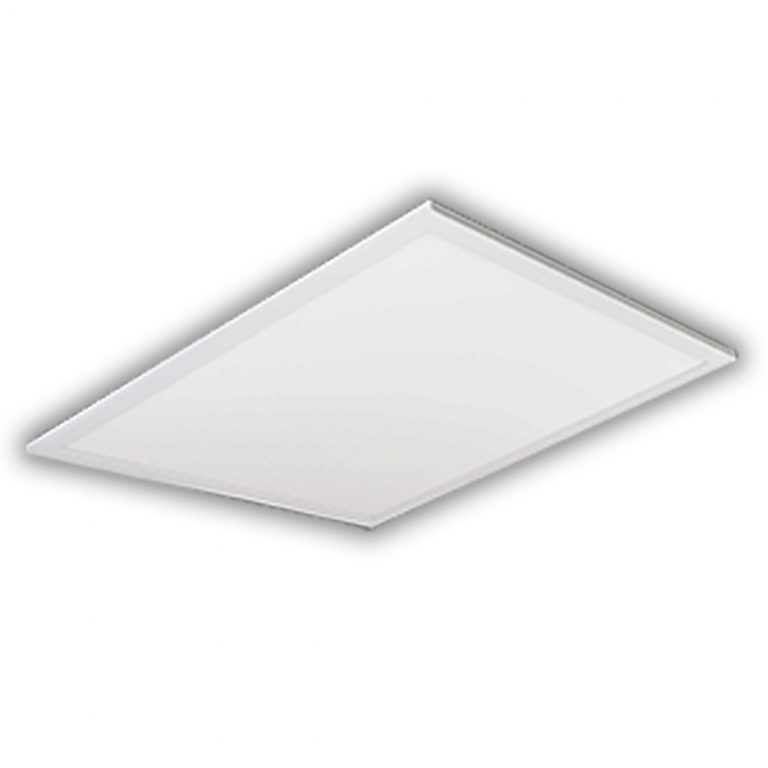

	807154819638	22EPL30/835/LED	81963	$58.10	Edge-Lit Flat Panel 2X2 30W 3500K 0-10V Dimmable	0.25	82	3500	0-10V	20	Frosted	120-277		30	9.8	Buy here
	807154819706	22EPL30/840/EM/LED	81970	$198.30	Edge-Lit Flat Panel 2X2 30W 4000K 0-10V Dimmable W/Battery Backup	0.41	82	4000	0-10V	20	Frosted	120-277		30	11.99	Buy here
	807154819645	22EPL30/840/LED	81964	$58.10	Edge-Lit Flat Panel 2X2 30W 4000K 0-10V Dimmable	0.25	82	4000	0-10V	20	Frosted	120-277		30	9.8	Buy here
	807154819713	22EPL30/850/EM/LED	81971	$198.30	Edge-Lit Flat Panel 2X2 30W 5000K 0-10V Dimmable W/Battery Backup	0.41	82	5000	0-10V	20	Frosted	120-277		30	11.99	Buy here
	807154819652	22EPL30/850/LED	81965	$58.10	Edge-Lit Flat Panel 2X2 30W 5000K 0-10V Dimmable	0.25	82	5000	0-10V	20	Frosted	120-277		30	9.8	Buy here
	807154819874	24EPL/SMK	81987	$35.40	2X4 Surface Mount Kit For Edge Lit Panels					20					2.73	Buy here
	807154819720	24EPL50/835/EM/LED	81972	$225.90	Edge-Lit Flat Panel 2X4 50W 3500K 0-10V Dimmable W/Battery Backup	0.41	82	3500	0-10V	20	Frosted	120-277		50	11.99	Buy here

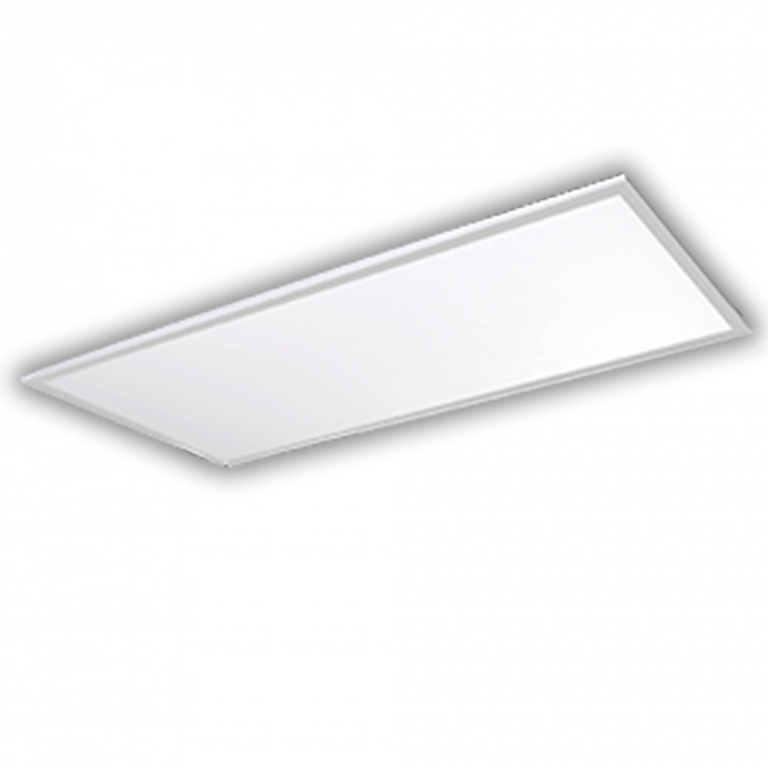

	807154819669	24EPL50/835/LED	81966	$94.10	Edge-Lit Flat Panel 2X4 50W 3500K 0-10V Dimmable	0.41	82	3500	0-10V	20	Frosted	120-277		50	18.22	Buy here
	807154819737	24EPL50/840/EM/LED	81973	$234.70	Edge-Lit Flat Panel 2X4 50W 4000K 0-10V Dimmable W/Battery Backup	0.41	82	4000	0-10V	20	Frosted	120-277		50	20.8	Buy here
	807154819676	24EPL50/840/LED	81967	$94.10	Edge-Lit Flat Panel 2X4 50W 4000K 0-10V Dimmable	0.41	82	4000	0-10V	20	Frosted	120-277		50	18.22	Buy here
	807154819744	24EPL50/850/EM/LED	81974	$234.70	Edge-Lit Flat Panel 2X4 50W 5000K 0-10V Dimmable W/Battery Backup	0.41	82	5000	0-10V	20	Frosted	120-277		50	20.8	Buy here
	807154819683	24EPL50/850/LED	81968	$94.10	Edge-Lit Flat Panel 2X4 50W 5000K 0-10V Dimmable	0.41	82	5000	0-10V	20	Frosted	120-277		50	18.22	Buy here
	807154103638	14FSBPL/30U8D	10363	$53.30	Select: CCT Selectable Backlit Panel; 1X4, 30W, 120-277V, 80 CRI, Dimmable	0.33	80	3500/4000/5000	0-10V	40	PC	120-277		30	4.98	Buy here
	807154103645	22FSBPL/30U8D	10364	$46.30	Select: CCT Selectable Backlit Panel; 2X2, 30W, 120-277V, 80 CRI, Dimmable	0.33	80	3500/4000/5000	0-10V	40	PC	120-277		50	4.85	Buy here
	807154103652	24FSBPL/50U8D	10365	$80.80	Select: CCT Selectable Backlit Panel; 2X4, 50W, 120-277V, 80 CRI, Dimmable	0.55	80	3500/4000/5000	0-10V	40		120-277		50	9.03	Buy here
	807154103300	14FSEPL/8DU	10330	$73.20	Field Selectable Edge Lit Panel; 1X4, 80 CRI, 0-10V Dimming, 120-277V, Selectable CCT: 3500K, 4000K, 5000K; Selectable Wattage: 25W, 30W, 40W		80	4000	Yes	20	Prismatic	120-277v	2 x 32W T8	40	18.03	Buy here
	807154103317	22FSEPL/8DU	10331	$71.70	Field Selectable Edge Lit Panel; 2X2, 80 CRI, 0-10V Dimming, 120-277V, Selectable CCT: 3500K, 4000K, 5000K; Selectable Wattage: 25W, 30W, 40W		80	4000	Yes	20	Prismatic	120-277V	2 x 32W T8	40	16.53	Buy here
	807154103324	24FSEPL/8DU	10332	$113.00	Field Selectable Edge Lit Panel; 2X4, 80 CRI, 0-10V Dimming, 120-277V, Selectable CCT: 3500K, 4000K, 5000K; Selectable Wattage: 30W, 35W, 45W		80	4000	Yes	20	Prismatic	120-277V	4 x 32W T8	45	30.2	Buy here

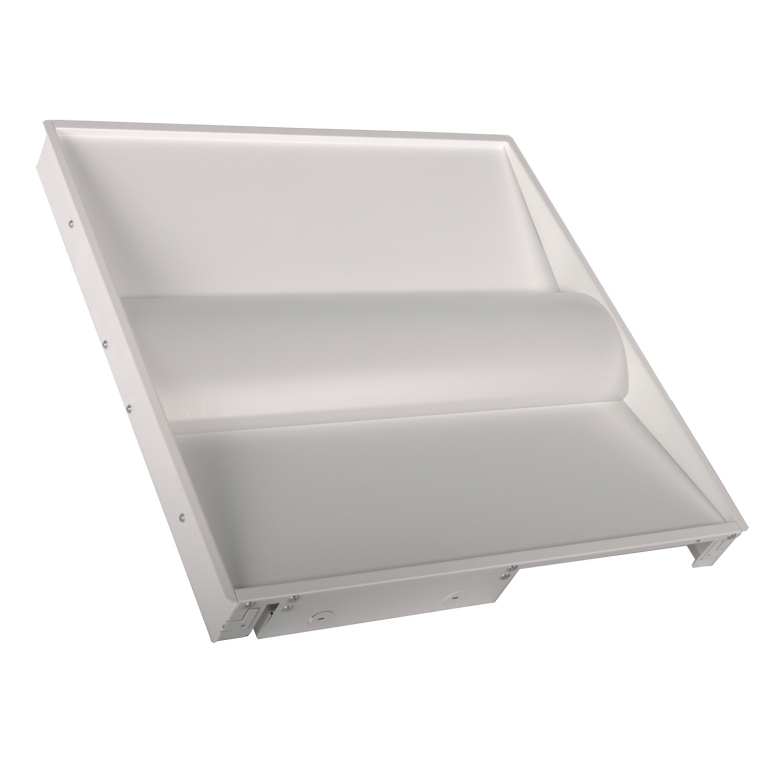

	807154819751	22VPL29/835/LED3	81975	$74.20	LED Volumetric Panel Gen III 2X2 29W 3500K 0-10V Dimmable	0.1	80	3500	Yes (0-10V)	20		120-277V	(2) 32W T8	29	12.1	Buy here
	807154819768	22VPL29/840/LED3	81976	$74.20	LED Volumetric Panel Gen III 2X2 29W 4000K 0-10V Dimmable	0.1	80	4000	Yes (0-10V)	20		120-277V	(2) 32W T8	29	12.1	Buy here
	807154819775	22VPL29/850/LED3	81977	$74.20	LED Volumetric Panel Gen III 2X2 29W 5000K 0-10V Dimmable	0.1	80	5000	Yes (0-10V)	20		120-277V	(2) 32W T8	29	12.1	Buy here

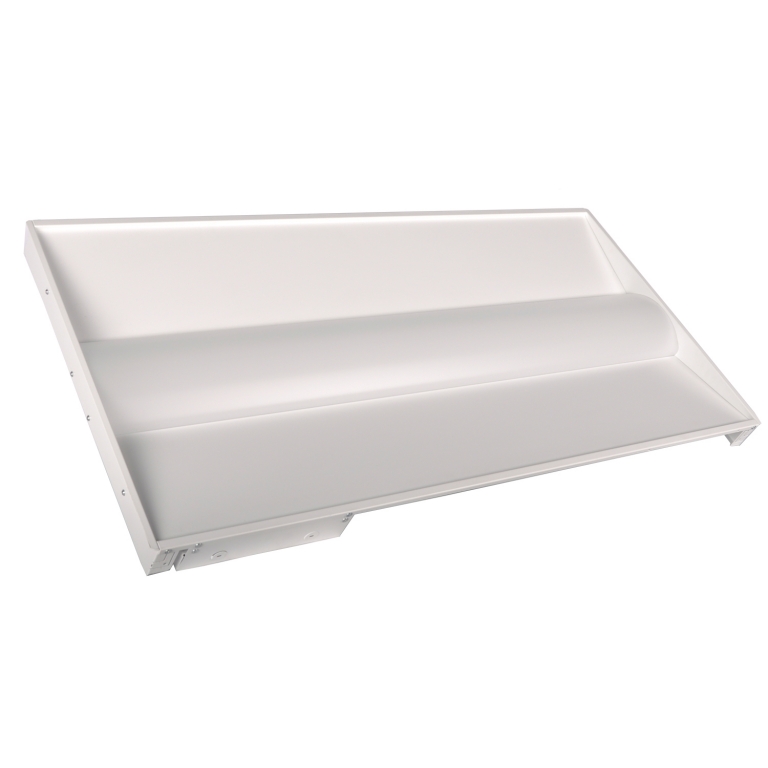

	807154819782	24VPL49/835/LED3	81978	$117.70	LED Volumetric Panel Gen III 2X4 49W 3500K 0-10V Dimmable	0.17	80	3500	Yes (0-10V)	20		120-277V	(4) 32W T8	49	21.1	Buy here
	807154819799	24VPL49/840/LED3	81979	$117.70	LED Volumetric Panel Gen III 2X4 49W 4000K 0-10V Dimmable	0.17	80	4000	Yes (0-10V)	20		120-277V	(4) 32W T8	49	21.1	Buy here
	807154819805	24VPL49/850/LED3	81980	$117.70	LED Volumetric Panel Gen III 2X4 49W 5000K 0-10V Dimmable	0.17	80	5000	Yes (0-10V)	20		120-277V	(4) 32W T8	49	21.1	Buy here

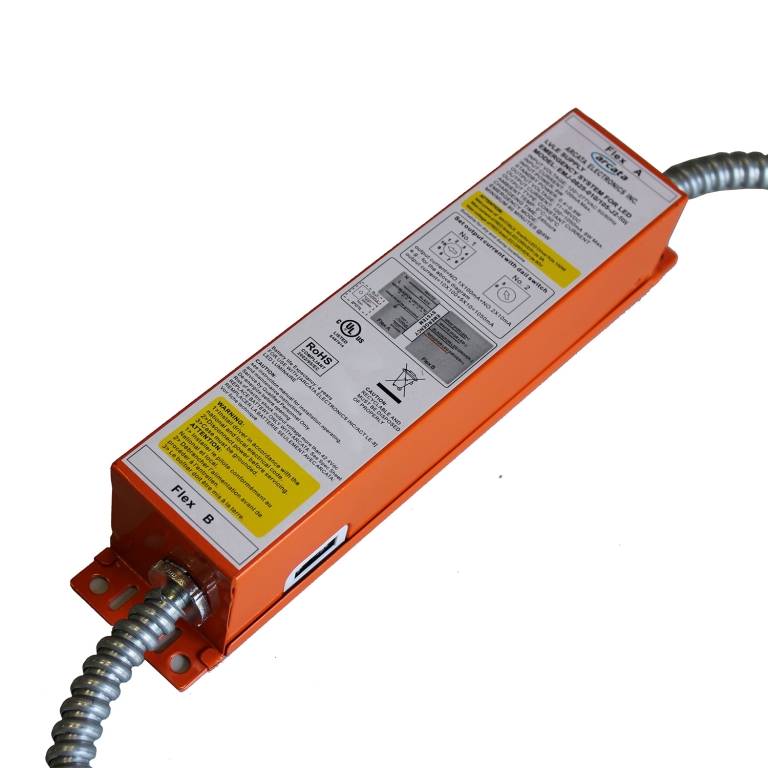

	807154819812	VPL/EM/LED3	81981	$138.50	LED Volumetric Panel Gen III Emergency Battery 16W				Yes (0-10V)	20		120-277V		16	0.5	Buy here
	807154104000	RVMW22/29U35	10400	$67.60	Retrofit Volumetric Panel: Multi-Wattage; 2X2, 19W, 24W, 29W, 3500K		80	4000	Yes		Diffused	120-277V	3 Lamp F17T8	29	5.5	Buy here
	807154104017	RVMW22/29U40	10401	$67.60	Retrofit Volumetric Panel: Multi-Wattage; 2X2, 19W, 24W, 29W, 4000K		80	5000	Yes		Diffused	120-277V	3 Lamp F17T8	29	5.5	Buy here
	807154104024	RVMW22/29U50	10402	$67.60	Retrofit Volumetric Panel: Multi-Wattage; 2X2, 19W, 24W, 29W, 5000K		80	4000	Yes		Diffused	120-277V	3 Lamp F17T8	29	5.5	Buy here
	807154104031	RVMW24/39U35	10403	$95.20	Retrofit Volumetric Panel: Multi-Wattage; 2X4, 24W, 32W, 39W, 3500K		80	3500	Yes		Diffused	120-277V	3 Lamp F32T8	39	5.5	Buy here
	807154104048	RVMW24/39U40	10404	$100.70	Retrofit Volumetric Panel: Multi-Wattage; 2X4, 24W, 32W, 39W, 4000K		80	4000	Yes		Diffused	120-277V	3 Lamp F32T8	39	11	Buy here
	807154104055	RVMW24/39U50	10405	$100.70	Retrofit Volumetric Panel: Multi-Wattage; 2X4, 24W, 32W, 39W, 5000K		80	5000	Yes		Diffused	120-277V	3 Lamp F32T8	39	11	Buy here
