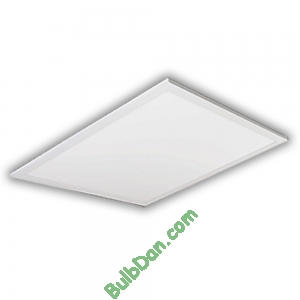

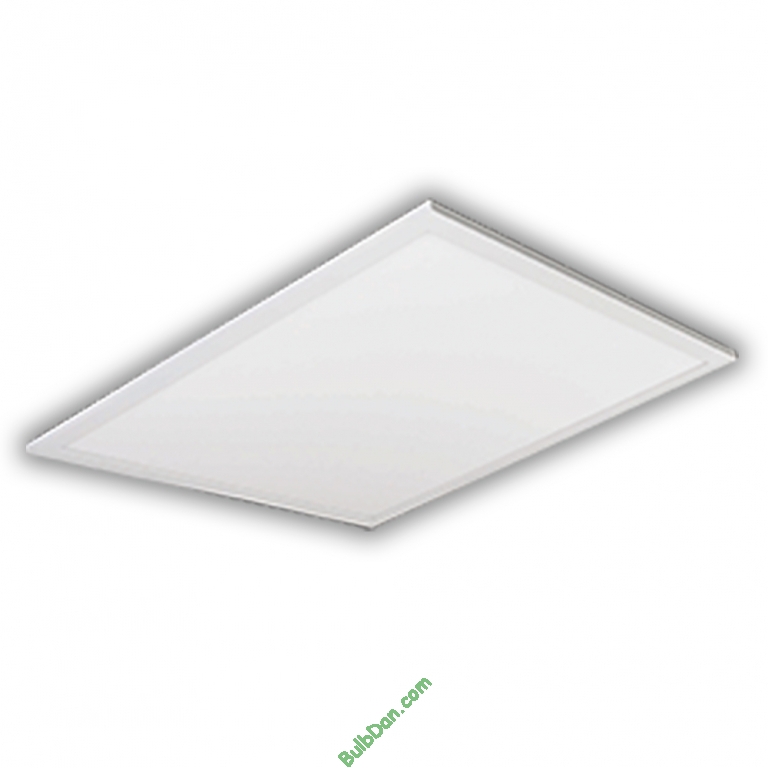

22EPL30/850/LED

Highlights
DLC Qualified, energy saving, long life, low profile
Price$41.40excl. TAX
Code807154819652
Manufacturer Code81965
Qty
AvailabilityUsually ships in 24 hours
Uniform illumination and architectural appeal in an energy efficient alternative to recessed fluorescent luminaires

Low-Profile, Lightweight Design
Edge Lit Technology
Emergency Battery Back-Up Options
Backed by a 5-Year Warranty

Markets:
Commercial
Healthcare
Retail
Hospital

Applications:
Office
Lobby
Hallway
Conference Room
Classroom

Specifications:
-  Edge lit technology delivers uniform illumination
 - Remote driver enclosure with multiple knockouts for easy access
 - ETL listed for damp locations
 - Emergency Battery Options
 - Surface mount kit available
 - Drop ceiling
 - Quiet & flicker-free LED technology Specifications
 - Fast access terminal block for easy thru-wire (up to 12 gauge wire size)
 - 0-10V Dimmable
 - Offset driver box mounting for challenging plennem mounting
 - IC rated
NoteRisk of electric shock. Do not use where directly exposed to water. This device is not intended for use with emergency exit fixtures. .
Specification
dimmable
0-10V
amps
0.25
hertz
50/60
watts
30
power factor
0.9
volts
120-277
etl
Yes
rohs
Yes
ul
No
cee high performance
No
energy star
No
applications
Commercial recessed/surface mount
warranty
5
minimum starting temperature
-20C
average life
50,000 hours
color temperature
5000
color rendering index (cri)
82
initial lumens
3150
ip rating
20
lamp weight
7.96
max ambient temperature
40C
finish
White
lens
Frosted
mercury
No
mercury content (mg)
0
uv/ir emissions
No
load
1.01
unspsc
39112102
weight
9.8
nema premium
No
dlc
Yes (PL28O8T0PDFC)
