22VPL29/850/LED3

Highlights
Long Life; Energy Efficient; DLC
Price$45.00excl. TAX
Code807154819775
Manufacturer Code81977
Qty
AvailabilityUsually ships in 24 hours

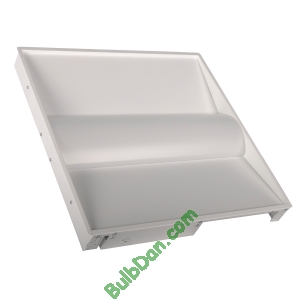

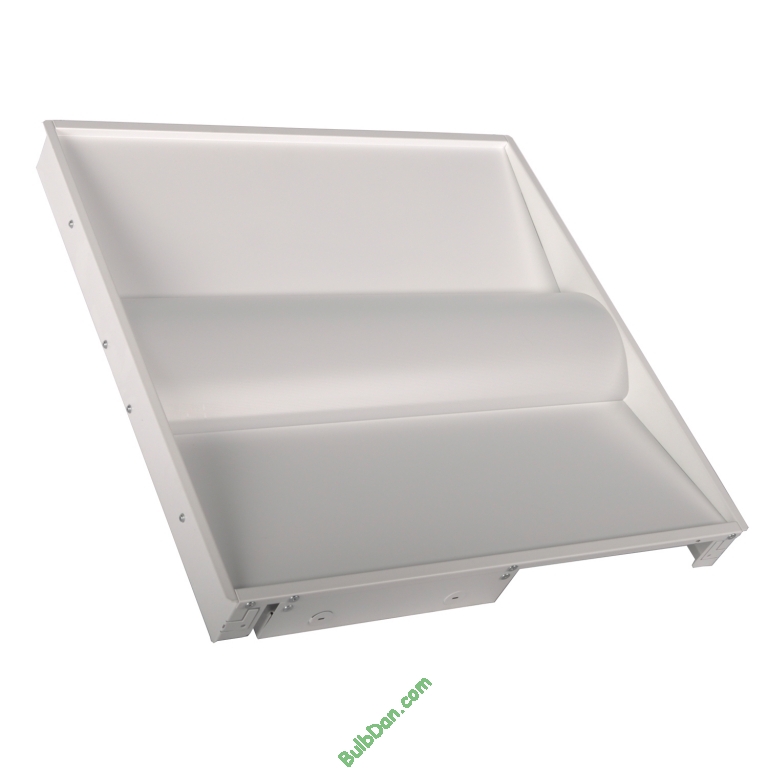

Beautiful illumination and architectural appeal in an energy efficient alternative to recessed fluorescent fixtures.

Specification Grade Architectural Design
Direct Backlit Design Provides Smooth, Uniform Illumination
Emergency Options
Backed by a 5-Year Warranty

Specifications:
-  Direct backlit design combined with a soft-diffusing lens provides a smooth and more uniform light distribution than edge-lit panels
 - Driver enclosure with multiple knockouts for easy wiring access
 - Rated for damp locations and non-IC applications
 - Quiet & flicker-free LED technology
 - Fast access terminal block for easy thru-wiring
 - Integral earthquake clips
 - 0-10V dimmable
 - Emergency battery available
 - 75,000 hour rated life

Applications:
Office
Lobby
Hallway
Conference
Room
Classroom

Markets:
Commercial
Healthcare
Retail
Hospital
NoteRisk of electric shock. Never disassemble or modify the LEDs. To avoid burns, do not touch the LEDs during operation and allow to cool completely after switching off. This luminaire is intended for emergency exit use with Emergency Battery Option. If this product causes interference with other devices, change the location of the products involved. 0-10V Dimming. Luminaire is UL for Damp locations. Do not use where directly exposed to water. .
Specification
dimmable
Yes (0-10V)
amps
0.10
hertz
50/60 Hz
watts
29W
power factor
0.90
volts
120-277V
watt equivalent
(2) 32W T8
csa
No
etl
No
rohs
Yes
ul
Yes
energy star
No
applications
Office, Lobby, Hallway, Conference Room, Classroom
warranty
5
minimum starting temperature
-20?C (-4?F )
average life
75,000 hours
beam spread (deg)
120
color temperature
5000K
color rendering index (cri)
80
initial lumens
3876
ip rating
IP20
max ambient temperature
40?C (104?F )
finish
White
load
1.15
unspsc
39112102
weight
12.1
dlc
Yes
